STUMP GRINDER, VERMEER SC362

Where to find STUMP GRINDER, VERMEER SC362 in Albertville

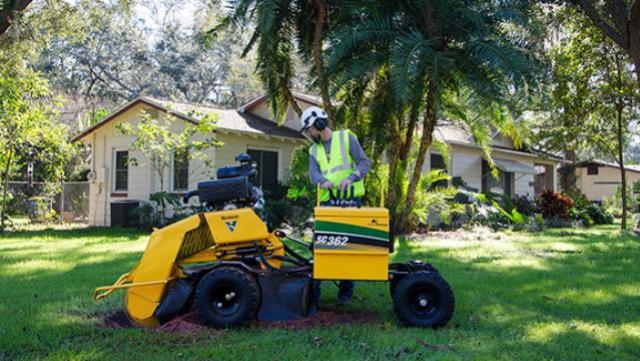

Image for reference only
Actual item may look different
Click on image for larger view

Comments:
  • here
  • General Dimensions and Weights
  • Length 110 "
  • Width 49.8 "
  • Height 53 "
  • Overall Width Transport (without duals) 35 "
  • Overall Width Transport (with duals) 49.8 "
  • Overall Height Transport 53 "
  • Weight - Engine Option One 1320 lbs
  • Sound Power 106
  • Engine
  • Make and Model Briggs & Stratton Vanguard
  • Gross Horsepower (Maximum) 35 hp
  • Torque (Max) 53 ft-lb
  • Fuel Tank Capacity 6 gal
  • Max Fuel Consumption 3.2 gph
  • Fuel Type Gasoline
  • Air Cleaner Dry-type safety element and restriction indicator
  • Recommended Oil 10W30 (See engine manual)
  • Oil Volume with Filter 2 qt
  • Cooling Medium Air
  • Clutch Type Electric clutch with brake
  • Cutterwheel System
  • Cutterwheel Diameter without Teeth 17 "
  • Cutterwheel Thickness .5 "
  • Cutterwheel Speed 1400 rpm
  • Cutterwheel Straight Line Dimension 47 "
  • Cutterwheel Cut Above Ground 24 "
  • Cutterwheel Cut Below Ground 15 "
  • Tooth Description Yellow Jacket cutter system
  • Number of Teeth 16
  • Number of Indexes 2
  • Number of Pockets 16
  • Reversible Pockets 16
  • Cutterwheel Guard
  • Chip Containment 7.7 cu ft
  • Cutterwheel Drive Components
  • Belt Type V-Belt
  • Number of Primary Belts 2 individual (matched pair)
  • Jackshaft Dimension 1.3
  • Jackshaft Bearing Type Sealed ball
  • Bearing Dimensions 1.3 bore
  • Number of Secondary Belts 6 Banded
  • Cutterwheel Shaft 1.8" (4.8 cm)
  • Bearing Dimensions - Secondary Belt 1.8" (4.8 cm) double spherical roller pillow block
  • Hydraulic System
  • Tank capacity 4 gal
  • Recommended Oil Type Vermeer HyPower 68
  • System Type Open-loop series system
  • Filtration Method Pump suction strainer (100 mesh) and 6 micron return filter
  • Pump Flow at Maximum RPM 3.7 gpm
  • System relief pressure 2030 psi
  • Flow Control AutoSweep (option) or 2 speed ground drive
  • Directional Control Manual hydraulic value
  • Electrical System
  • System Voltage 12 V
  • Battery 400 CCA
  • Warning Lights Operator presence status, clutch engage/disengagement status
  • Switches Two-speed ground drive, clutch engage/disengage, operator presence handles
  • Controller Vermeer ACS
  • Shutdown System Engine low oil pressure
  • here
  • Chassis
  • Frame Description Welded tube and plate steel
  • Control Station Description Fixed side location
  • Steerable Axle Type Hydraulic steering, oscillating axle
  • Tires 5.7" x 8" (14.5 x 20.3 cm) duals standard
  • Axle/Suspension Rigid/Fixed (Rear)
  • Ground Drive
  • Low Speed Travel 66 ft/min 20.1 m/min
  • High Speed Travel 133 ft/min 40.5 m/min
Add of the above items to my quote request




* Please call us or submit a quote request for pricing and more information about our stump grinder vermeer sc362 rentals in Albertville, Marshall County, and Northern Alabama.
