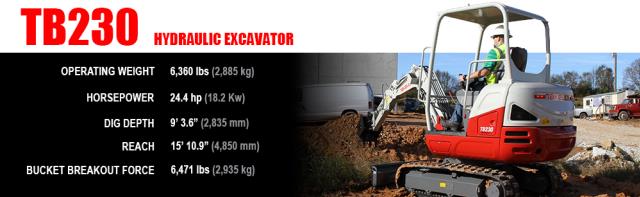

EXCAVATOR TAKEUCHI TB230


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Quantity:

Additional Information

Click here for important safety/operational video
OPERATING PERFORMANCE:
Operating Weight Canopy
6,360 lbs (2,885 kg)
Maximum Digging Depth
9 ft 3.6 in (2,835 mm)
Maximum Dump Height
10 ft 7.2 in (3,230 mm)
Maximum Reach
15 ft 10.9 in (4,850 mm)
Maximum Bucket Breakout Force
6,471 lbs (2,935 kg)
Maximum Arm Digging Force
2,900 lbs (1,325 kg)
Arm Length
4 ft 9 in (1,445 mm)
Slew speed
10.3 rpm
Traction Force
6,340 lbs (2,876 kg)
ENGINE:
Make/Model
Yanmar / 3TNV88F
Tier Rating
EPA Final Tier 4
Cylinders/Displacement
3 / 81.0 cu in (1.3 L)
Horsepower
24.4 hp (18.2 kW)
Rated Engine Speed
2,400 rpm
Maximum Torque
63.0 ft-lb @ 1,440 rpm (85.3 Nm)
Engine Lubrication
5.0 qt (4.7 L)
Cooling System
4.2 qt (4.0 L)
Fuel Tank Capacity
14.0 gal (53.0 L)
Fuel Consumption (65% of full load)
0.8 gal / hr (3.3 L / hr)
Electrical System
12 volts / 40 amps
UNDERCARRIAGE:
Traction Drive Type
Planetary Reduction w/ Automatic Shift
Parking Brake
Spring Applied, Hydraulically Released
Track Roller Type
Permanently Sealed, Triple Flanged Rollers
Track Rollers
3 per side
Track Width
11.8 in (300 mm)
Track Ground Contact Length
4 ft 8.7 in (1,440 mm)
Ground Pressure
4.3 psi (29.6 kPa)
Maximum Travel Speed
Low Range
1.8 mph (2.9 km/hr)
High Range
3.2 mph (5.2 km/hr)
HYDRAULIC SYSTEM:
Pump Type
Two Piston Pumps w/ Two Gear Pumps
Total Hydraulic Flow
24.2 gal / min (91.6 L)
Primary Auxiliary Hydraulic Flow
13.4 gal / min (50.6 L / min)
System Operating Pressure
3,046 psi (21 MPa)
Hydraulic Reservoir Capacity
9.2 gal (35.0 L)
Hydraulic System Capacity
14.8 gal (56.0 L)
DIMENSIONS:
Maximum Dig Depth
9 ft 3.6 in (2,835 mm)
Maximum Dump Height
10 ft 7.2 in (3,230 mm)
Maximum Reach Ground Level
15 ft 5.4 in (4,710 mm)
Maximum Vertical Dig Depth
7 ft 0.8 in (2,153 mm)
Overall Width
4 ft 9.5 in (1,460 mm)
Transport Height
8 ft 3.9 in (2,540 mm)
Transport Length
15 ft 0.9 in (4,595 mm)
Ground Clearance
11.9 in (305 mm)
Dozer Blade Height
11.8 in (300 mm)
Independent Boom Swing Angle
78 Left / 58 Right
Minimum Front Swing Radius (Straight)
6 ft 2.7 in (1,895 mm)
Minimum Front Swing Radius (Offset)
4 ft 11.2 in (1,505 mm)
Tail Swing Radius
4 ft 4.4 in (1,330 mm)

* Please call us or submit a quote request for pricing and more information about our excavator takeuchi tb230 rentals in Albertville, Marshall County, and Northern Alabama.
